Ppr Fiberglass Reinforced Pipe Production Line

Price:	35000.0~50000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Use: Plastic Pipe Crusher

Plastic Type: PP/PE

Shaft Design: Single

Features:

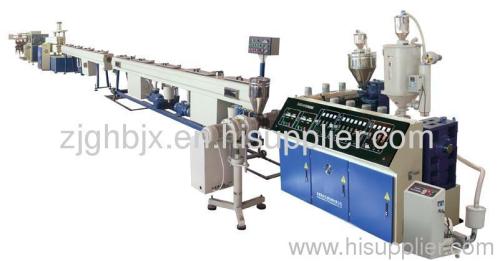

●The production line consists of four efficient extruders and a co-extrusi

Features:

●The production line consists of four efficient extruders and a co-extrusion die. The pipe is three layers sandwich structure plus a standard marking strip.

●The barrier type screw is specially designed for making PP-R(PP-B) and fiberglass together, even under a low temperature.

●We innovate a patented spiral mould for co-extrusion. The fiber is allocated according to the optimum angle, so the strength can be raised differently and proportionately in longitudinal direction and latitudinal direction.

●Each of the three layers could be adjusted separately according to the designing of the structure to acquire a high quality and more economical product.

Advantages:

●Obvious more rigid than normal PP-R(PP-B)pipe, could be installed out door.

●With the bind of fiberglass, so composite pipe could provide a definitely lower expansion coefficient close to the expansion of the fiber. That results a wide application in transporting high temperature liquid.

●Because fiberglass is cheaper than PP-R, and the wall thickness of the pipe could be thinner due to fiber`s high strength, so the cost of the composite pipe is actually reduced.

●The connection is compatible with the normal PP-R electric fusion welding. All tools for PP-R pipe can still continuously use for the composite pipe.

●The installation standard is followed PP-R pipe, no need for new regulation and training.

Application:

●Cool/hot water for architecture

●Chemical liquid/Corrosive liquid

●Drink water, purified water

●Hot water recycling

●Compressed air

●Food industry

●Air conditioner/Solar energy

●Agriculture industry
